Segmented Continuous Flow Autoanalyze
The analyzer is a fully automatic, high-resolution, multiparametric device. It offers all the advantages of the Segmented Flow technique (maximum precision and accuracy at the lowest cost per unit of analysis). It is based on colorimetry and incorporates as many primary operations as are required until the chemical reaction is complete, which guarantees very high reproducibility.
These operations are complemented as indicated in the officially approved methodologies such as: dialysis, extraction, digestion and dilution.
Instrumental Facilities

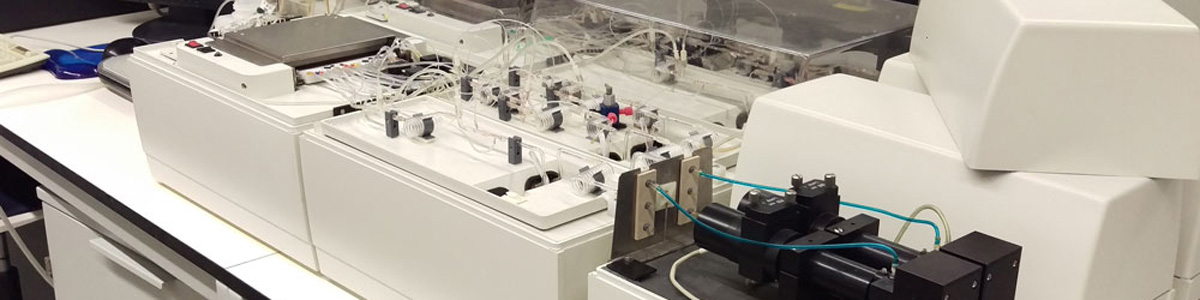

- 2 AutoAnalyzer AA3 Bran+Luebbe
- Display: XY-2
- High capacity peristaltic pump: from 1 to 4 methods
- Chemical modules: each module has the capacity for 2 independent chemical methods.
- Detectors: 4 high-resolution bichannel photometers
- Dialysis modules: 4 independent channels
- Online digestion modules: 2 independent UV channels
- AACE® software for control and obtaining results
Applications
- Wastewater total N and P, ions (Cl–, NO2–, NO3–, PO43-, NH4+)
- Drinking water nutrients at the lowest levels
- Seawater nutrients at the lowest levels
- Soil extracts, leaf extracts and fertilizers
- Food and drinks, meats, wines, etc.
- Application to sectors such as the chemical and pharmaceutical industries, etc.
Sample requirements
- Documentation to be submitted: Fully Filled Service Form
- Minimum sample quantity required: 10 mL (please contact technical staff)
- Maximum number of samples per application: 50
- Sample reception: frozen or refrigerated (consult us)
- Filtration if possible: 0.45µm
- Time frame for collecting measured samples: 1 month
- Refrigeration of analyzed samples: 1 week after delivery of results
